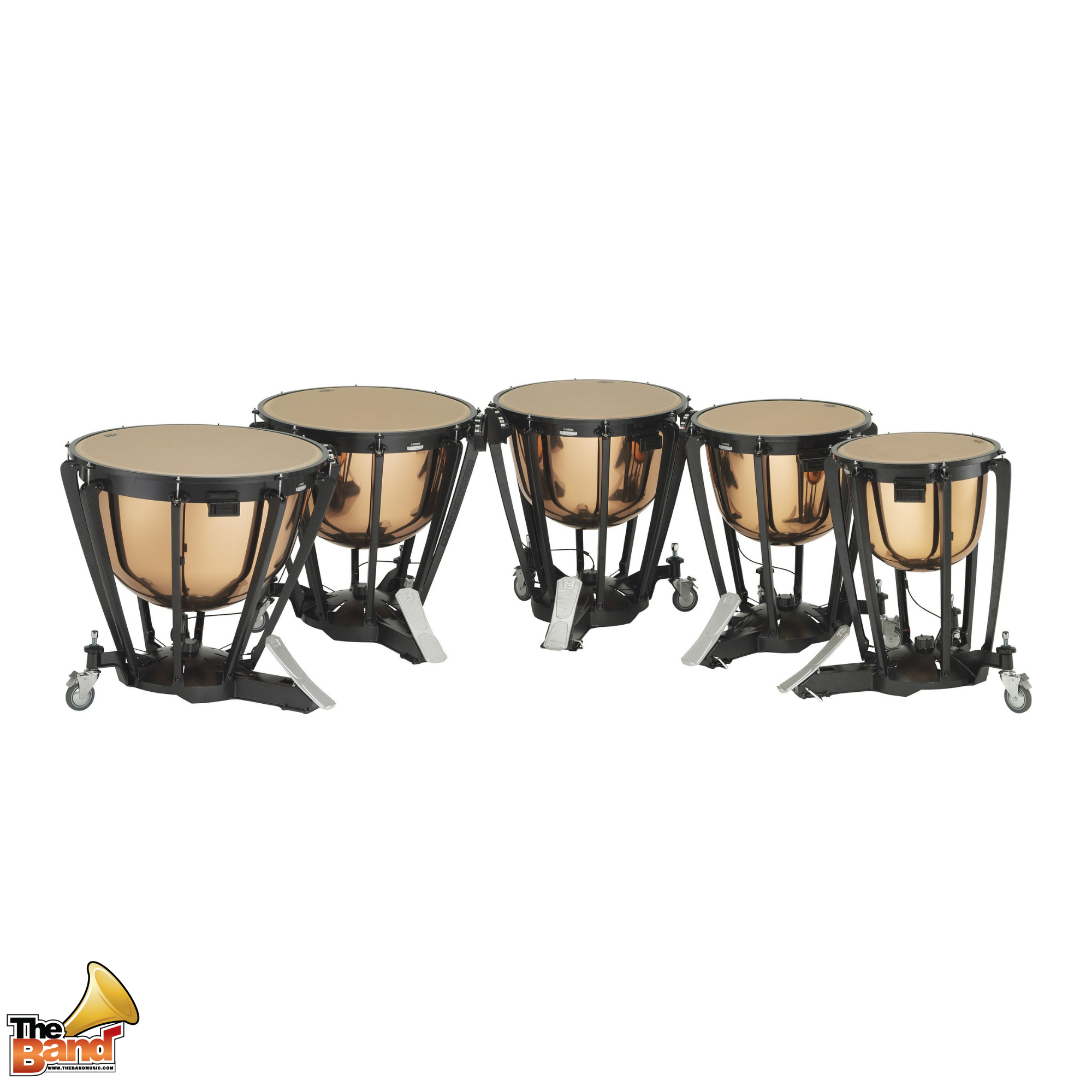

YAMAHA TIMPANI TP-6300R SERIES

To bring out the very best qualities of the copper material used, bowl size, bearing edge shape (the edge that contacts the timpani head), the diameter of the aperture in the bottom of the bowl, and other details have been meticulously examined and refined to deliver the deepest, richest tone possible in combination with outstanding playability.

Pedal spring and head tension are balanced so the set pitch is maintained even if the player removes his or her foot from the pedal. Pitch changes across the entire range are smooth and easy. A wide pitch range of approximately a minor sixth per inch has been achieved.

The timpani frame does more than just support the bowl. It plays a significant role in sound quality as well. In addition to offering outstanding strength and operability, the frames are designed to a weight that contributes to optimum acoustic response.

Large main casters are supplemented by a third caster below the pedal, allowing the instruments to glide smoothly and easily.

Left: Pedal caster, Right: Main caster

The height of all casters can be adjusted over a 25mm range, allowing precise adjustments to the instrument height as well as head angle. The instruments can be ideally positioned for standing or seated playing, on any stage. Adjustment is carried out using the supplied tuning key or an appropriate allen wrench, and can be easily accomplished by one person.

*The picture shows TP-7300R Series.

The main casters include a one-touch lock mechanism that contributes to fast, sure setup. In addition to the main caster lock mechanism an auxiliary brake has been added to the pedal caster. The player can engage the auxiliary brake to securely lock the caster and prevent movement of the instrument.

Left: Main caster lock, Right: Pedal caster auxiliary brake

Large pedals have been adopted for easier operation.

The indicator can also be easily relocated to the left or right side of the instrument to facilitate German or American setups.

*The picture shows TP-7300R Series.

A tuning key/wrench holder that attaches to the side opposite the tuning gauge is included.

*The picture shows TP-7300R Series.

Yamaha Remo Renaissance Heads with aluminum insert rings offer outstanding expression with stable pitch.

*The picture shows TP-7300R Series.
